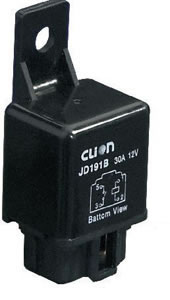

Automobile Relay HHC67G (JD191B)

Parameters of Automobile Relay HHC67G (JD191B) :
(A=NO B=NC C=NO & NC)

Contact	Form	1A
	Load (Resistive Leakage)	30A/24VDC
	Contact resistance (initial)	≤100mΩ
	Material	Silver alloy
	Electric life	≥105
	Machine life (300 times/min)	≥107
Pick-up voltage (25℃)		DC:≤75%×rated voltage
Release voltage  (25℃)		DC:≥10%×rated voltage
Maximum voltage  (25℃)		110%×rated voltage
Specifications of coils		12V,24V
Coil power	DC	1.8W
Pick-up time (rated voltage)		≤15ms
Release time (rated voltage)		≤10ms
Initial withstand	Between contacts	1000VAC/1min(leakage current:1mA)
	Between contact and coil	1500VAC/1min(leakage current:1mA)
Insulation resistance		≥100mΩ(500VDC)
Ambient temperature		-55~70℃
Ambient humidity		35%-80%RH
Atmospheric pressure		86-106KPa
Installation		PCB; By screw
Packing	Quantity	500
	Dimension of outer case	385×190×300MM
	Weight (each relay)	Approx.38g

Outline drawing, wiring diagram and installation dimensions (mm)
