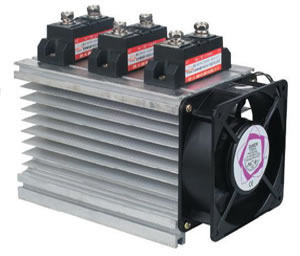

Integrated Solid State Relay HHG1

Parameters of Integrated Solid State Relay HHG1

Types		HHG1-3/032F-38 100-250A(SSR-DA)
Name		Three-relay-integrated Three-phase Solid State Relay
Control Voltage		032:3-32VDC
Control Current		6-35mA
Turn-on Voltage		3VDC
Turn-off Voltage		1VDC
Reverse Voltage		32VDC
Load Voltage		38:40-440VAC
Load Current		100A,120A,150A,200A,250A
Transient Voltage		38:1000VAC
On-state Voltage Drop		＜1.6VAC
On-off Time		≤10ms
Off-state Leakage Current		≤10mA
Dielectrics Voltage-resistance		≥2500VAC
Insulation Resistance		500mΩ 500VDC testing
Ambient temperature		-30~80℃
Dimensions		238L×125W×177H
Work Pointer		LED
Installation		Fixed by screw
Packing	Quantity	1
	Dimensions of outer case	/
Weight (each relay)		Approx. 4520g

Note:
1.When load currency is above 10A, a radiator is necessary; when above 80A, a fan is necessary.
2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage.
Outline drawing and Installation dimension (mm)
