Three phase voltage regulator is also named controlled silicon power regulator. Based on thyristor module, this power control device uses the intelligent control circuit as its core. The principle of three phase voltage regulator is following: the direct current signal instrument outputs is transformed into digital, and synchronously triggers the thyristor. The conduction angle of thyristor is changed to adjust the voltage and power, thus realizing precise temperature control. The voltage regulator can be widely used in heating industry like the industrial furnace, glass furnace, oven, petrochemical industry and shoe machinery.
1. The calculation of power or current when select the right three phase voltage regulator(resistive load): the inductive load should be derated 2~3 times.
Single phase: Load(KW)/Voltage(V)==Ampere(A)×1.5==Regulator ampere(A)
2. Notice of wiring
① No fuse switch NFB ② Contactor MC
③ Power regulator ④ LOAD

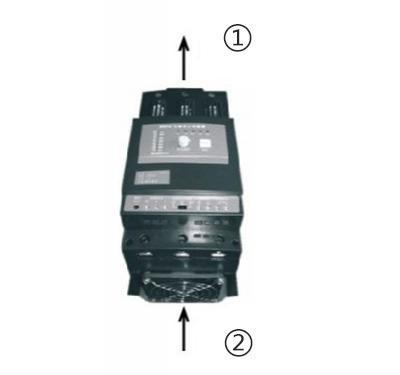

① Air outlet ② Air inlet
|No fuse switch NFB||Can cut off the power supply; Please do not contact the switch when maintain it|
|Contactor MC||Can cut off the power supply for load; The contactor can cut off the power supply to avoid the damage of device since the high temperature or other serious accidents when the voltage regulator has failures or the working temperature is largely higher than rated value.(The contactor should equip with temperature controller)|
|Power regulator||Can control the signal to adjust the output power to reach the needed power. This power regulator has installed fuse wire inside, so user does not need install the fuse wire in its outside.|
|LOAD||Both load and wiring are available, and the three-phase three-wire dose not connect zero line △ Y.|
Taking security into consideration, the worker sets the three phase voltage regulator with control signal mode(4—20mA) when the device leaves factory. If the user wants to change the settings, he can uncover the red cover, and pokes toggle switch to choose the needed mode. Referring to the item 6, and installing the device according to the wiring example.The user can adjust fine tuning to compensate the different load power of the same signal when user use multiple voltage regulators at the same time or has device segmentation adjusting.
|Code||Display status||Failure reason||Treatment measures|
|PL||The power supply indicator light is off(light is on indicates the device works smoothly).||Auxiliary power dose not conduct the power transmission; PCB base plate has failures.||Inspecting the auxiliary powercircuit; change the PCB base plate or repair it.|
|IN||The power supply indicator light is off and dose not display the percentage.||The device signal dose not output; The device signal has polar phase; Anti-internal MAX VR or external VRreturns to zero.||Inspecting the device signal; Inspecting the internal MAX VR and external VR|
|OUT||Phase position-light is on indicates the device works smoothly. Zero position-glint indicates the device works smoothly.||No device signal ;IN light is on,OUT light is off; OUT light is on and no current output.||Inspecting the IN light, and the light is off indicates the device signal or reverse connecting PCB base plate has failures. Please change the PCB base plate or repair it .|
|FB||Fuse wire fuses/ power supply loose phase indicator light(-light is on indicates the device works smoothly)||Fuse wire fuses; Main current dose not conduct the power transmission; Having loose phase||Inspecting the main current or fuse wire; Change the fuse wire; Inspecting the load whether have short circuit or ground connection; Inspecting the main current.|
|LB||Load disconnection/load has the short circuit(light is on indicates the device works abnormally)|| Load abnormal |
(This function is optional)
|Inspecting the load whether has the short circuit; Inspecting the load with ground connection.|
|ER||The SCR over temperature indicator light is on (light is on indicates the device works abnormally)||SCE heat dissipation air fan has failures or be stuck; The environmental temperature is higher than the rated value or has the bad ventilation||Change the air fan or clean the debris; Improve the ventilation conditions.|
Notice: The regulator can not control about 50% output: The failure of three-phase three-wire product(HHT4-4) is leaded by the connecting between zero line and load terminal. The output load should be balanced when use the three-phase three-wire product(HHT4-4), otherwise the output voltage is not the same. Please do not touch the using side plate with high temperature.
