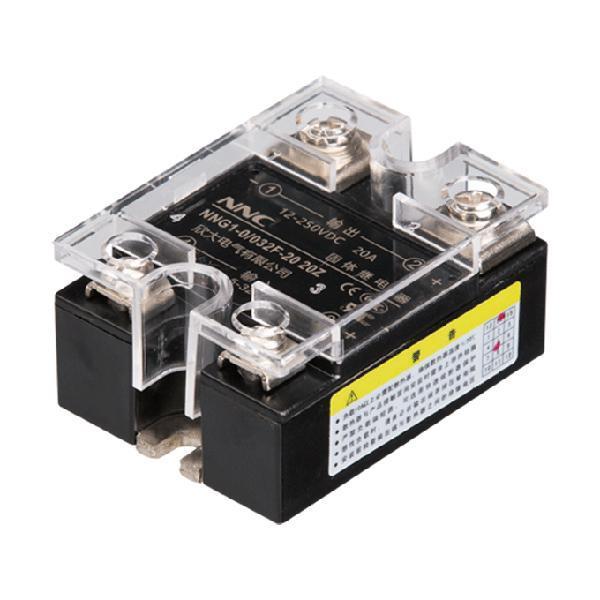

NNG1-0/032F-20 DC-DC 10A-40A Single Phase Solid State Relay

NNG1-0/032F-20 DC-DC 10A-40A Single Phase Solid State Relay

The NNG1-0/032F-20 DC-DC 10A-40A single phase solid state relay is used in the automatic control filed like signal light, scintillator, stage lighting control system, instrument and apparatus, medical equipment, copier, automatic washing machine, automatic fire equipment and security system, and it also can be used as the selector switch of the power capacitor which be compensated by the network power factor. In addition, the NNG1-0/032F-20 DC-DC 10A-40A single phase solid state relay is widely used in the bad environment and frequent switching occasions like the chemical industry and coal industry which need prevent from explosion, damp, dust and erosion.

Model explanation

NN: Corporate identification
G: Solid state relay
1- Design number
0: Single-phase direct current output
1: Single-phase alternative current output 032: Constant current input voltage: DC3-32V
F: Enclosed type
-:Input control voltage:-Direct current~ Alternative current
20: Rated output voltage: 20: 12-250VDC
10:Rated output current: 10A,15A,20A,25A ,30A ,40A
Z: Zero crossing type
A: Direct current value

Specificationof NNG1-0/032F-20 DC-DC 10A-40A single phase solid state relay

Control voltage	032:5-32VDC
Control current	6-25mA
Connected voltage	5VDC
Turn off voltage	1VDC
Reverse voltage	32VDC
Load voltage	20:12-250VDC
Load current	10A,15A,20A,25A,30A,40A
Transient voltage	20:400VDC
On-state voltage drop	DC:≤1.2VDC
On-off time	DC:≤5mS
Off-state leakage current	DC:≤5mA
Dielectric withstand voltage	≥2500VAC
Insulation resistance	Testing in 500MΩ,500VDC
Environmental temperature	-30℃~80℃
Installation style	Screw installation
Relay weight	10≈110g 20≈140g 40≈145g
Dimension	57.2×43.5×29mm
Notice	When the load is more than 10A, the device must install the heat sink, and when the working temperature is more than 80℃, the device must be strongly cooled by air fan or water.

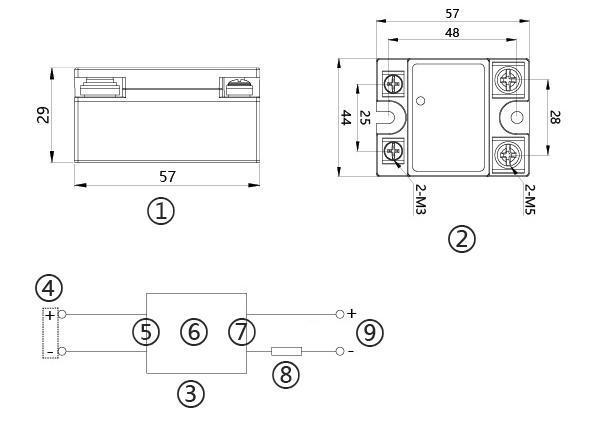

Dimension and installation

① Dimension figure; ② Install size; ③ Wiring diagram; ④ Control power supply ⑤ Input ⑥ Ssr ⑦ Output ⑧ Load ⑨ Load power supply
