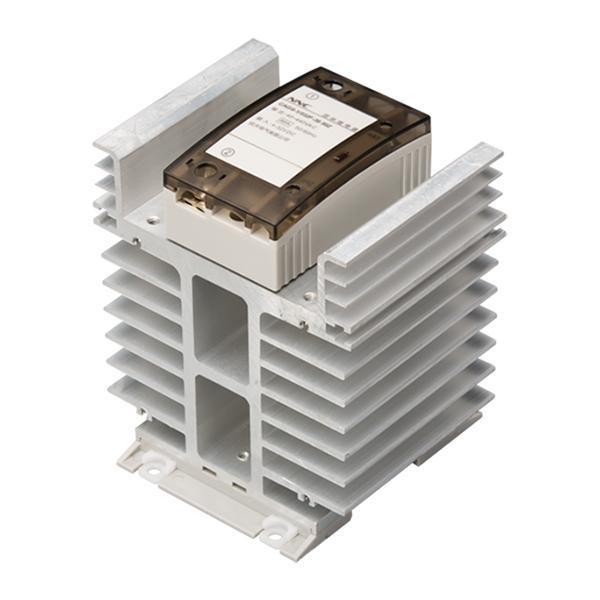

The CAG6H-1/250F-60 AC-AC 60-80A single phase solid state relay is used in the automatic control filed like signal light, scintillator, stage lighting control system, instrument and apparatus, medical equipment, copier, automatic washing machine, automatic fire equipment and security system, and it also can be used as the selector switch of the power capacitor which be compensated by the network power factor. In addition, the CAG6H-1/250F-60 AC-AC 60-80A single phase solid state relay is widely used in the bad environment and frequent switching occasions like the chemical industry and coal industry which need prevent from explosion, damp, dust and erosion.

CA: Corporate identification
G: Solid state relay
6: Design number
H: Intensifying input type
1:Single-phase alternative current output
3:Three-phase alternative current output
250: 032:Constant current input voltage: DC4-32V
250:Alternative input voltage:AC90-250V
024:Linear input:AC/DC24V
F: Enclosed type
-:Input control voltage:-Direct current~ Alternative current
60: Rated output voltage: 60:60-600VAC
60:Rated output current:60A 80A
Z: Zero crossing type

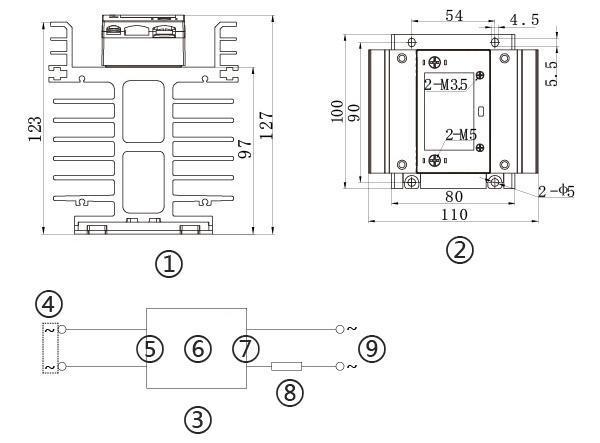

① Dimension figure; ② Install size; ③ Wiring diagram; ④ Control power supply ⑤ Input ⑥ Ssr ⑦ Output ⑧ Load ⑨ Load power supply
