Solid State Voltage Regulator
NNT3-U/22 10A-40A 100A Solid State Voltage Regulator

NNT3-U/22 10A-40A 100A Solid State Voltage Regulator

The NNT3-U/22 10A-40A 100A solid state voltage regulator is applied to adjust the analog quantity like power, voltage, temperature, luminance and speed in the petrochemical industry apparatus, food machinery, packaging machinery, textile machinery, stage light.

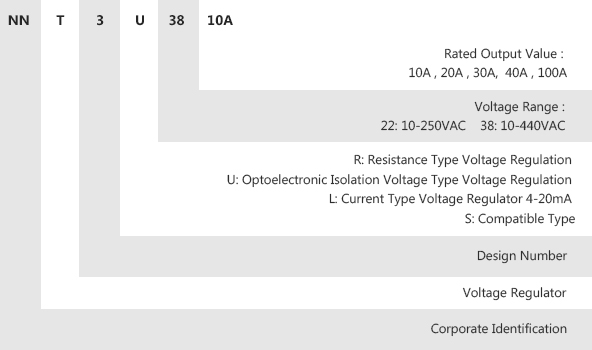

Model explanation

Specification of NNT3-U/22 10A-40A 100A solid state voltage regulator

Control mode	0-5VDC 0-10VDC 4-20mA regulation
Phase shift range	0-175°
Voltage regulating range	22:10-250VAC 38:10-440VAC
Load voltage	22:220VAC 38:380VAC
Load current	10 20 30 40 100A
Transient voltage	22:600VAC 38:900VAC
Minimum blocking	≤3VAC
Isolation voltage	Active full isolation
Off-state leakage current	≤10mA
Dielectric withstand voltage	≥2000VAC
Insulation resistance	Testing in 500MΩ, 500VDC
Environmental temperature	-30℃~80℃
Regulator weight	10A≈380g 40A≈460g 100A≈520g
Dimension	106×75×31.5mm
Installation style	Screw installation
Working indicator	LED
Notice	When the load is more than 10A, the device must install the heat sink, and when the working temperature is more than 80℃, the device must be cooled by air fan or water.

Dimension and installation

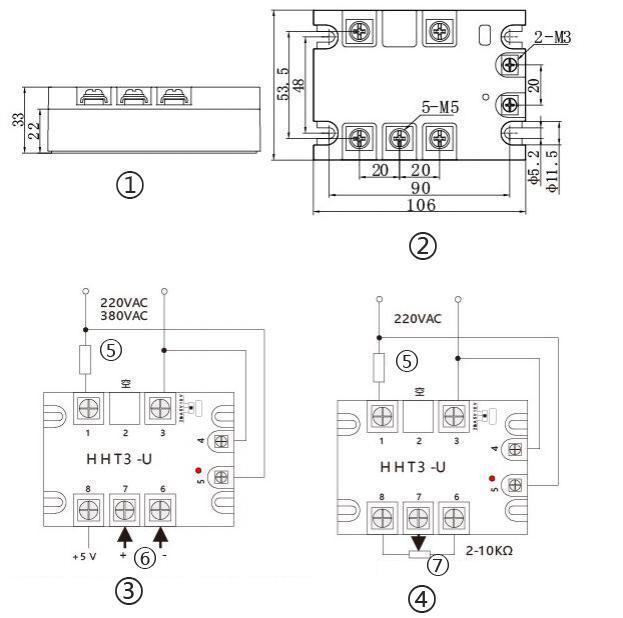

① Dimension figure; ② Install size ; ③ 220VAC and 380VAC auto control wiring diagram ; ④ Manual control wiring diagram; ⑤ Load ; ⑥ Signal; ⑦ Only 5V mode use
