MDQ 150A-250A Single Phase Diode Module
The MDQ 150A-250A single phase diode module is applied in the cutting process like the rectification, heating, speed governing, voltage stabilization, inverter, compensation, electroplate, electrolysis, spot welding and electric welding, and it also can be used in the devices like the charge-discharge device and soft start device.
Model specification
Technical parameters
| Model | ||||
| Direct current input current | A | 150 | 200 | 250 |
| Repetitive reverse peak voltage | V | 600-2000 | 600-2000 | 600-2000 |
| On stage peak voltage/current | V | 1.50 | 1.50 | 1.50 |
| A | 225 | 300 | 375 | |
| Repetitive reverse peak current | mA | 10 | 10 | 10 |
| Temperature | ℃ | 100 | 100 | 100 |
| Single-phase input forward average current | A | 75 | 100 | 125 |
| Maximum rated junction temperature | ℃ | 150 | 150 | 150 |
| Isolation voltage | V/(AC) | 2500 | 2500 | 2500 |

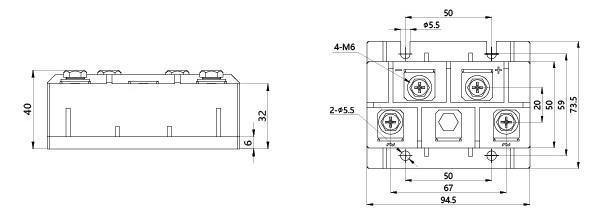

Dimension and installation style
250A normal type
Wiring diagram
Index
semiconductor, electric switch, electrical device
