200A-300A MTG MTY MDG MDY Welding Rectifier Thyristor Module

The 200A-300A MTG MTY MDG MDY welding rectifier thyristor module is applied in the cutting process like the rectification, heating, speed governing, voltage stabilization, inverter, compensation, electroplate, electrolysis, spot welding and electric welding, and it also can be used in the devices like the charge-discharge device and soft start device.

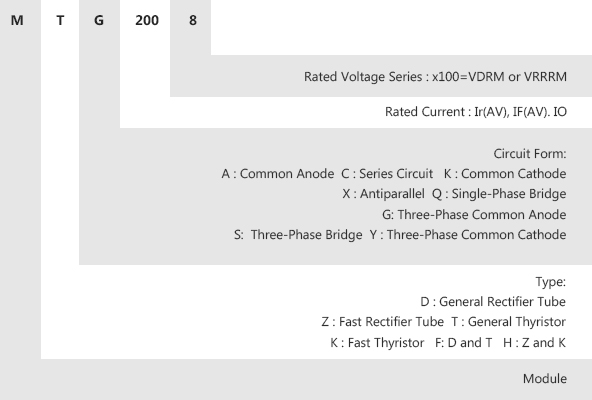

Model specification
Technical parameters
Model MT_200A MT_250A MT_300A
On state average current A 200 250 300
Off state repetitive peak reverse voltage V 400-2600 400-2600 400-2600
On stage peak voltage/current V 1.70 1.70 1.70
A 600 750 900
Repetitive forward-reverse peak current mA 20 20 25
Trigger current mA 150 150 150
Trigger voltage V 2.5 2.5 2.5
Holding current mA 100 100 100
Off state voltage critical rising rate V/μs 800 800 800
On state current critical rising rate A/μs 100 100 100
Maximum rated junction temperature ℃ 125 125 125
Dimension and installation style
200A-300A
Dimension and installation style
Wiring diagram
Wiring diagram
