KBPC Bridge Rectifier

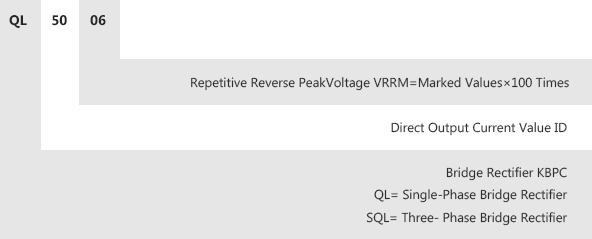

Model specification
Technical parameters
Model Direct current output current Single-phase input forward average current Repetitive reverse peak voltage Repetitive reverse peak current Isolation voltage
A A V mA V
kbpc5-35A 5-35 2.5-17.5 100-1600 5 2500
QL5-50A(Square) 5-50 2.5-25 100-1600 5 2500
QL5-50A(Oval) 5-50 2.5-25 100-1600 5 2500
QL40A 40 20 100-1600 7 2500
QL60A 60 30 100-1600 7 2500
QL100A 100 50 100-1600 7 2500
QL150A 150 75 100-1600 10 2500
QL200A 200 100 100-1600 10 2500
QL250A 250 125 100-1600 10 2500
Feature
  • Current:5-250A
  • Voltage:100-1600V
  • Small scale common-use sizes
  • Vacuum+hydrogen charging protection welding technique
  • Glassivation diode core
  • Perfect power/volume ratio
  • High thermal conductivity package
Dimension and installation style
Dimension and installation style
