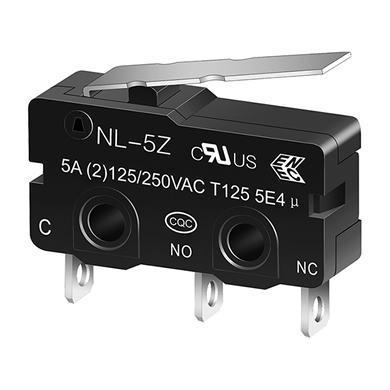

NL-5Z/10Z Miniature Micro switch
Rated value
| Model | Rated voltage | Resistive load |
| AC125V | 10A | |
| AC250V | 10A | |
| AC125V | 5A | |
| AC250V | 5A |
Connector specification
| Item | Mode | NL-10Z | NL-5Z |
| Connector | Specification | Rivet | |
| Material | Silver alloy | ||
| Interval（standard value） | 0.5mm | ||
| Minimum applicable load | DC5V 160mA | ||
Security certification
| Certification | Rated voltage | NL-10Z | NL-5Z |
| CQC(GB15092.1) | AC125V | 10A | 5(2)A |
| AC250V | |||
| UL(UL61058,CSA-C22.2 NO.61058-1) | AC125V | 10A | 5(2)A |
| AC250V | |||
| ENEC(EN 61058-1) | AC125V | - | 5A |
| AC250V | 10A | 5A | |
| DC30V | - | 5A |
Exterior dimension /action feature
| Action feature | Mode | NL-10Z NL-5Z | NL-10ZF1 NL-5ZF1 | NL-10ZF2 NL-5ZF2 | NL-10ZF3 NL-5ZF3 |
| Actuating force | OF Maximum | 0.5N | 0.7N | 0.9N | 1.2N |
| Restoring force | RF Minimum | 0.02N | 0.06N | 0.1N | 0.1N |
| Post-stroke | OT Minimum | 1.0mm | 1.00mm | 1.0mm | 1.0mm |
| Response differential stroke | MD Maximum | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
| Free position | FP Maximum | 12mm | |||
| Action position | OP | 9.5±0.8mm | |||
