- NL series Miniature Micro switch

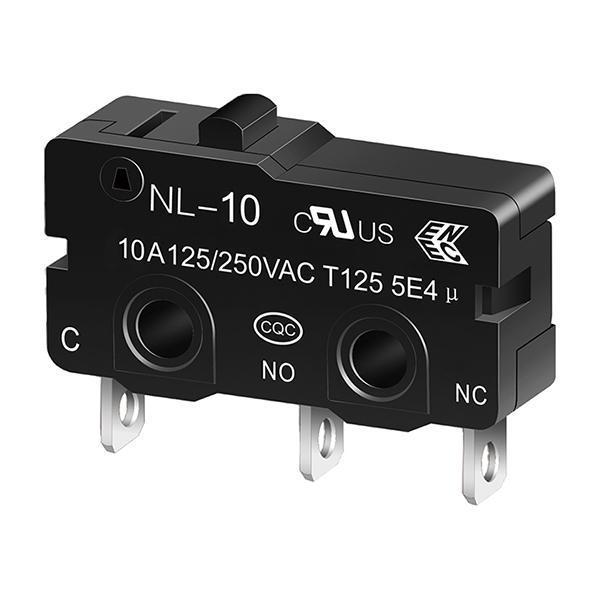

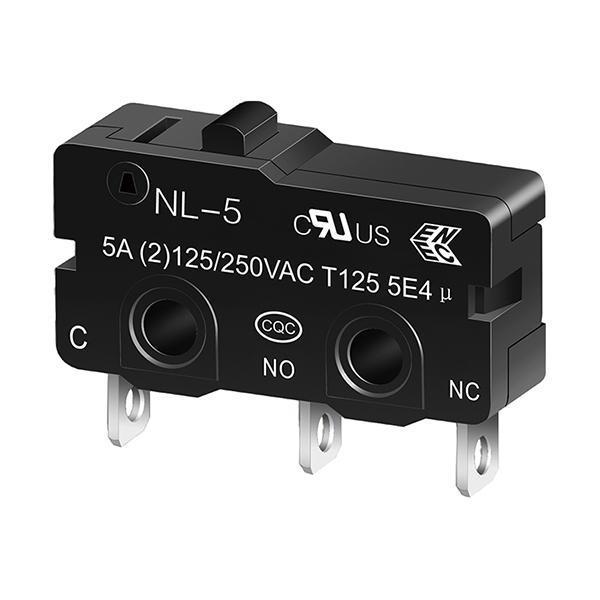

- NL-5/10 Push Button Miniature Micro switch
NL-5/10 Push Button Miniature Micro switch
Rated value
| Model | Rated voltage | Resistive load |
| AC125V | 10A | |
| AC250V | 10A | |
| AC125V | 5A | |
| AC250V | 5A |
Connector specification
| Item | Mode | NL-10 | NL-5 |
| Connector | Specification | Rivet | |
| Material | Silver alloy | ||
| Interval（standard value） | 0.5mm | ||
| Minimum applicable load | DC5V 160mA | ||
Security certification
| Certification | Rated voltage | NL-10 | NL-5 |
| CQC(GB15092.1) | AC125V | 10A | 5(2)A |
| AC250V | |||
| UL(UL61058,CSA-C22.2 NO.61058-1) | AC125V | 10A | 5(2)A |
| AC250V | |||
| ENEC(EN 61058-1) | AC125V | - | 5A |
| AC250V | 10A | 5A | |
| DC30V | - | 5A |

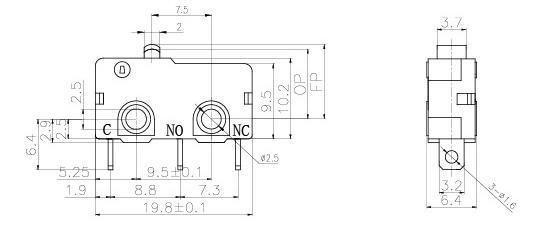

Exterior dimension /action feature
| Action feature | Mode | NL-10 NL-5 | NL-10F1 NL-5F1 | NL-10F2 NL-5F2 | NL-10F3 NL-5F3 |
| Actuating force | OF Maximum | 0.8±0.3 | 1.5±0.4 | 2.3±0.4 | 3.2±0.5 |
| Restoring force | RF Minimum | 0.15N | 0.35N | 0.55N | 0.55N |
| Post-stroke | PT Maximum | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| Response differential stroke | OT Minimum | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Free position | MD Maximum | 0.2mm | 0.2mm | 0.2mm | 0.2mm |
| Action position | OP | 8.55±0.2mm | |||
