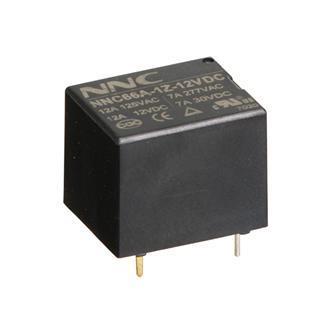

NNC66A Miniature Electromagnetic Relay

NNC66A Miniature Electromagnetic Relay

The NNC66A miniature electromagnetic relay can be applied to household appliances, PCB circuit board, industrial control system and automatic control system, etc.

Features

High power capacity contact: 7A .10A
The NNC66A miniature electromagnetic relay can directly welded on the printed circuit board.

Identification

CCC: 2011010303478445
CE: 5397070516
CQC: CQC14002106703
TUV: R50301238
UL:E235027

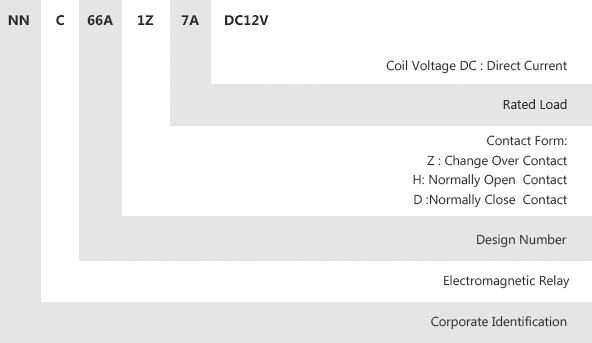

Model explanation

Contact parameters

Contact form	1Z,1H,1D
Contact load	7A	10A
Maximum switching voltage	277VAC 7A 30VDC 7A	277VAC 10A 30VDC 10A
Contact material	Silver alloy

Relay coil

Rated voltage V	DC6V	DC12V	DC24V	DC48V
Rated current (± 10%) mA	60	30	15	7.5
Coil resistance (± 10%)	100	400	1600	6400
Rated power consumption W	0.36W
Pull-in voltage (Maximum) V	Below 75%
Drop-out voltage(Minimum) V	Above 10%
Allowable voltage(Maximum) V	Rated voltage110%
Rated voltage V	DC6V	DC12V	DC24V	DC48V
Rated current(± 10%) mA	75	37	19	9
Coil resistance(± 10%)	80	324	1263	5333
Rated power consumption W	0.45W
Pull-in voltage(Maximum) V	Below 75%
Drop-out voltage(Minimum) V	Above 10%
Allowable voltage(Maximum) V	Rated voltage110%

Specification of NNC66A miniature electromagnetic relay

Pull-in time		10ms
Drop-out time		5ms
withstand voltage	Between the homopolar contacts	1100VAC/1min(Leakage current 1mA)
	Between the heteropolar contacts	/
	Between contacts and coil	1800VAC/1min(Leakage current 1mA)
Weight		About 10g

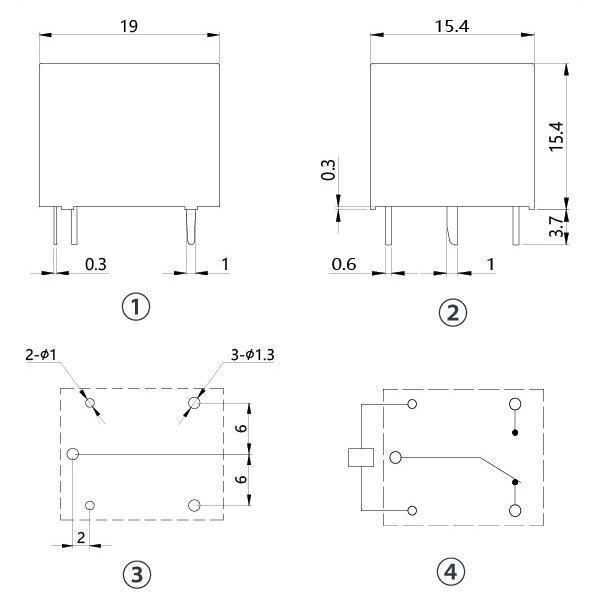

Dimension and installation

① Front view; ② Side view; ③ Installation size; ④ Wiring diagram
