300A-800A MFC MFA MFK MFX Thyristor Rectifier Module

300A-800A MFC MFA MFK MFX Thyristor Rectifier Module

The 300A-800A MFC MFA MFK MFX thyristor rectifier module is applied in the cutting process like the rectification, heating, speed governing, voltage stabilization, inverter, compensation, electroplate, electrolysis, spot welding and electric welding, and it also can be used in the devices like the charge-discharge device and soft start device.

Model specification

Technical parameters

Model		MF port 300A	MF port 400A	MF port 500A	MF port 600A	MF port 800A	MF port 1000A
On state average current	A	300	400	500	600	800	1000
Off state repetitive peak reverse voltage	V	400-2600
On stage peak voltage/current	V	1.9
On stage peak voltage/current	A	900	1050	1500	1800	2400	3000
Repetitive forward-reverse peak current	mA	30	40	50	50	50	50
Trigger current	mA	180	200	200	200	200	200
Trigger voltage	V	2.5	2.5	2.5	3.0	3.0	3.0
Holding current	mA	100
Off state voltage critical rising rate	V/μs	800
On state current critical rising rate	A/μs	100
One cycle forward on state non-repetitive surge current	A×10³	9.3	14.0	16.0	16.0	16.0	16.0
Maximum rated junction temperature	℃	125
Insulation voltage	V(AC)	2500

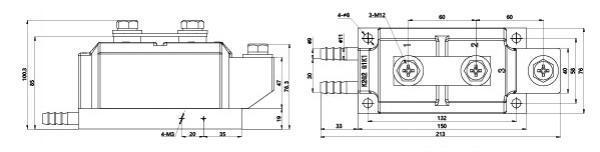

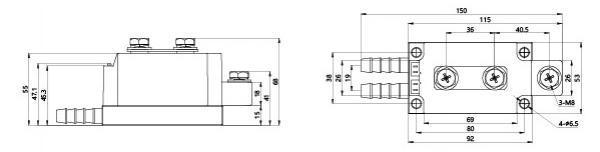

Dimension and installation style

300A

400A-500A

600A

800A-1000A

Wiring diagram
