NC71G Electromagnetic Power Relay (JQX-60F)

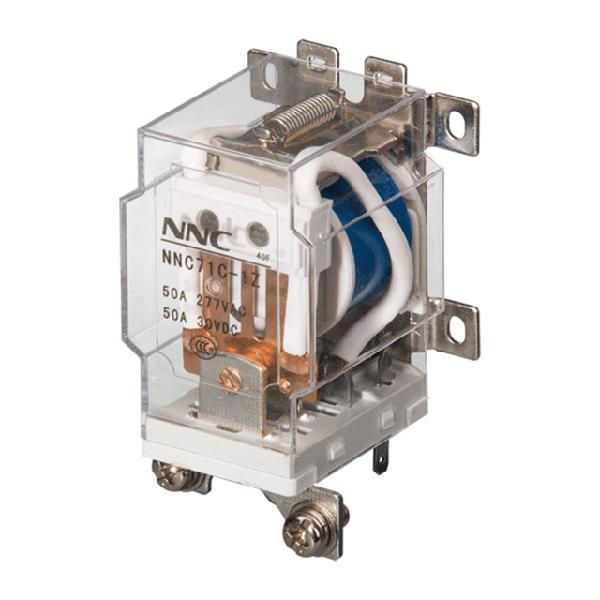

NC71G Electromagnetic Power Relay (JQX-60F)

The NC71G electromagnetic power relay (JQX-60F) can be applied to household appliances, mechanical control, industrial equipment, industrial control system, automatic control system, agricultural equipment and power transmission and distribution, etc.

Features

The NC71G electromagnetic power relay (JQX-60F) provides changeover contacts that include one group of (60A) .
Large load changeover power: 60A
The device adapts the screw installation mode and guide rail installation mode.

Identification

CCC:2011010303471251

Model explanation

Contact parameters

Contact form	1Z,1H,1D
Contact load	60A
Maximum switching voltage	240VAC 60A 28VDC 60A
Contact material	Silver alloy

Relay coil

Rated voltage V	DC12V	DC24V	DC110V	DC220V
Rated current (±10%) mA	167	83.3	18.2	9
Coil resistance(±10%) Ω	71.8	288	6044	24444
Rated power consumption W	2.0W
Pull-in voltage (Maximum) V	Below 75%
Drop-out voltage(Minimum)V	Above 10%
Allowable voltage(Maximum) V	Rated voltage×110%
Rated voltage V	AC12V	AC24V	AC110V	AC220V
Rated current (±10%) mA	716.7	358	78.2	39
Coil resistance(±10%) Ω	5.9	23.4	492	1974
Rated power consumption W	8.6VA
Pull-in voltage (Maximum) V	Below 80%
Drop-out voltage(Minimum)V	Above 30%
Allowable voltage(Maximum) V	Rated voltage×110%

Specification of NC71G electromagnetic power relay (JQX-60F)

Coil voltage		DC:6 - 220V AC:6-380V
Pull-in time		≤25ms
Drop-out time		≤15ms
withstand voltage	Between the homopolarcontacts	1500VAC/1min(Leakage current 1mA)
	Between the heteropolarcontacts	/
	Between contacts and coil	2500VAC/1min(Leakage current 1mA)
Insulation resistance		≥200MΩ(500VDC)
Size	63.2 ×46×46mm
Weight	About 160g

Dimension and installation

① Front view; ② Side view; ③ Installation size; ④ Wire diagram
