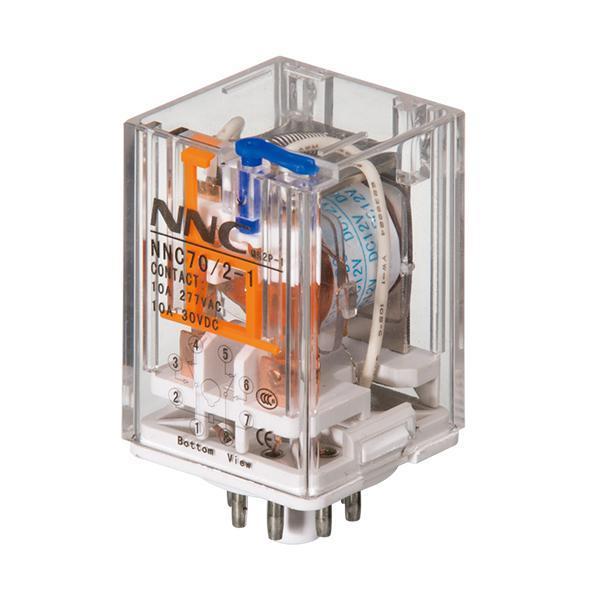

NNC70-2Z Electromagnetic Power Relay (MK2P)

NNC70-2Z Electromagnetic Power Relay (MK2P)

The NNC70-2Z electromagnetic power relay (MK2P)can be applied to household appliances, mechanical control, industrial equipment, industrial control system ,automatic control system, agricultural equipment and power transmission and distribution, etc.

Features

The NNC70-2Z electromagnetic power relay (MK2P) provides changeover contacts that include two group of (10A) and three groups of (10A).
The device provides the socket type installation mode.
The device can be optionally equipped with indicator light and diode.

Identification

CCC:2011010303471252

Model explanation

Contact parameters

Contact form	2Z,2H,2D
Contact load	10A
Maximum switching voltage	240VAC 10A 28VDC 10A
Contact material	Silver alloy

Relay coil

Insulation resistance		≥100MΩ(500VDC)
Coil voltage		DC:6 - 220V AC:6-380V
Pull-in time		≤20ms
Drop-out time		≤15ms
Withstand voltage	Between the homopolar contacts	1000VAC/1min(Leakage current 1mA)
	Between the heteropolar contacts	1500VAC/1min(Leakage current 1mA)
	Between contacts and coil	1500VAC/1min(Leakage current 1mA)
Dimension	35.5 × 35.5 ×55.5mm
Weight	About75g

Dimension and installation

① Front view; ② Side view; ③ 2Z wiring diagram-1; ④ 2Z wiring diagram-2
