NNC68C Electromagnetic Power Relay

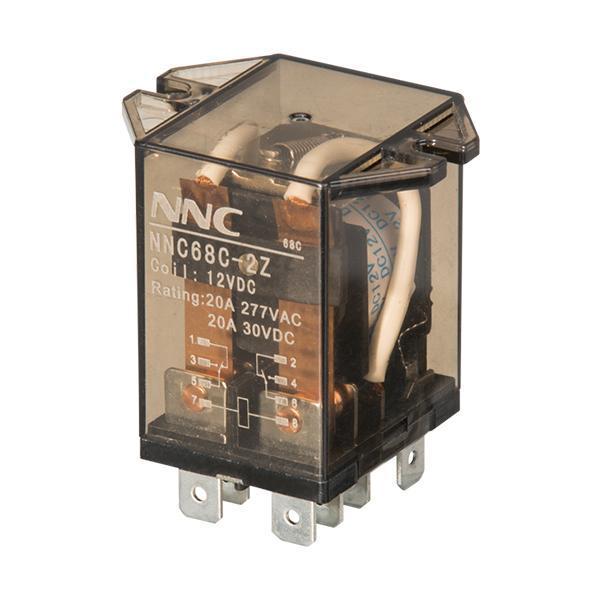

NNC68C Electromagnetic Power Relay

The NNC68C electromagnetic power relay can be applied to household appliances, mechanical control, industrial equipment, industrial control system, automatic control system, agricultural equipment and power transmission and distribution, etc.

Features

Large load changer over power: 20A
The NNC68C electromagnetic power relay provides the PCB printing plate installation mode, socket type installation mode and flange installation mode.
The device can be optionally equipped with indicator light and diode.

Identification

CE:5399090516

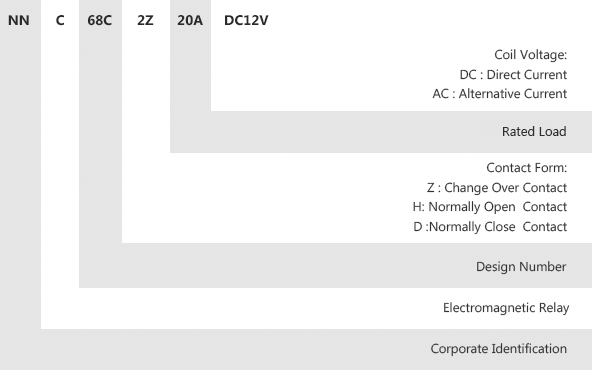

Model explanation

Contact parameters

Contact form	2Z,2H,2D
Contact load	20A
Maximum switching voltage	240VAC 20A 28VDC 20A
Contact material	Silver alloy

Relay coil

Rated voltage V	DC12V	DC24V	DC110V	DC220V
Rated current (±10%) mA	150	75	16.3	8.1
Coil resistance (±10%)	80	320	6748	27160
Rated power consumption W	1.8W
Pull-in voltage (Maximum) V	Below 75%
Drop-out voltage(Minimum) V	Above 10%
Allowable voltage(Maximum) V	Rated voltage110%
Rated voltage V	AC12V	AC24V	AC110V	AC220V
Rated current (±10%) mA	225	112.5	24.5	12.3
Coil resistance (±10%)	18.7	74.7	1571	6260
Rated power consumption W	2.7VA
Pull-in voltage (Maximum) V	Below 80%
Drop-out voltage(Minimum) V	Above 30%
Allowable voltage(Maximum) V	Rated voltage110%

Specification of NNC68C electromagnetic power relay

Insulation resistance		100M(500VDC)
Coil voltage		DC:6 - 220V AC:6-380V
Pull-in time		25ms
Drop-out time		25ms
Withstand voltage	Between the homopolar contacts	1000VAC/1min( 1mA)
	Between the heteropolar contacts	2500VAC/1min(Leakage current 1mA)
	Between contacts and coil	2500VAC/1min(Leakage current 1mA)
Dimension		46×35.5×52.2mm
Weight		About 75g

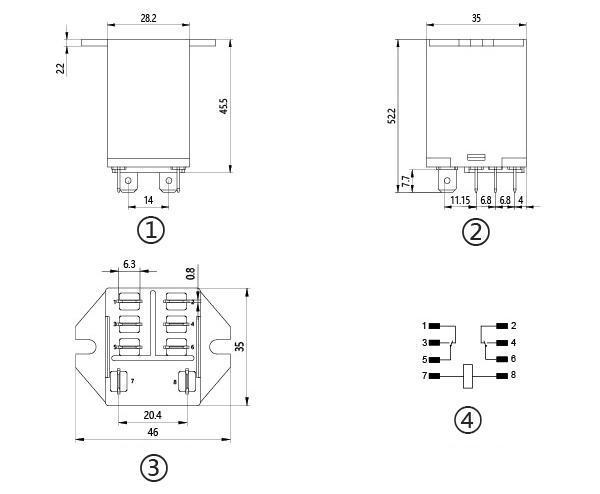

Dimension and installation

① Front view; ② Side view; ③ Installation size; ④ Wiring diagram
