Three Phase Bridge Rectifier Module

Features
1. The chip of the three phase bridge rectifier module is electrical insulation with the bottom plate and operates with 2500V AV voltage.
2. Its capsulation adopts international standard.
3. The highest working junction temperature is 140℃.
4. As a result of its fully pressure-contact structure, this three phase bridge rectifier is featured by good characteristics of temperature and circulating ability of power.
5. High surge current and low forward voltage drop

Applications
This three phase bridge rectifier is typically used in the power of welding machine and various DC power. Additionally, it is also used in the converter, soft-start of motor and various eliminator power.

Technical partameters

Type	Output DC current Id	Three phase input mean forward current	Shell temperature TC	Repetitive peak reverse voltage ARRM	Repetitive peak reverse current IRRM	Peak on-state voltage/current VTM/ITM		Highest junction temperature Tjm	Isolation voltage viso	Outline
	A	A	℃	V	mA	V	A	℃	VA.C
MDS30	30	10	100	600-2000	8	1.45	30	150	2500	MQ19. MQ20
MDS60	60	20	100	600-2000	8	1.45	60	150	2500	MQ19. MQ20
MDS100	100	35	100	600-2000	10	1.45	100	150	2500	MQ19. MQ20
MDS150	150	50	100	600-2000	10	1.50	150	150	2500	MQ21
MDS200	200	68	100	600-2000	10	1.50	200	150	2500	MQ21
MDS300	300	100	100	600-2000	10	1.50	300	150	2500	MQ23
MDS400	400	135	100	600-2000	10	1.50	400	150	2500	MQ23
MDS500	500	168	100	600-2000	10	1.50	500	150	2500	MQ24
MDS600	600	200	100	600-2000	10	1.50	600	150	2500	MQ24
MDS800	800	270	100	600-2000	10	1.50	800	150	2500	MQ24
MDS1000	1000	330	100	600-2000	10	1.50	1000	150	2500	MQ24

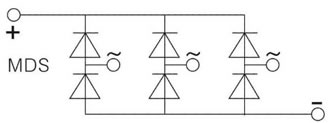

Electrical schematic diagram

External dimensions
